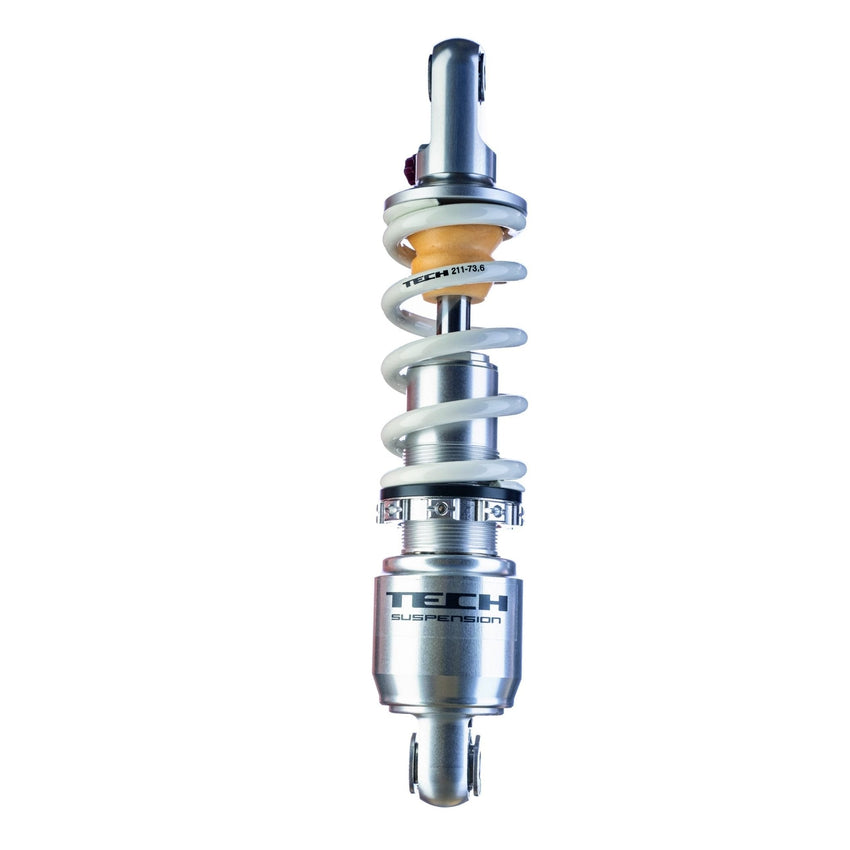

TECH Suspension part for your e-moto
TJ2 rear shock with bladder membrane separator, 24-click rebound and 1-10mm spring preload adjustment.
Product Details
Easy to set up and intuitive to understand, the TJ2 uses membrane (bladder) technology for exceptional sensitivity and grip across all conditions. It features two key adjustments:
Key Features:
• Bladder membrane separator for smooth and consistent damping
• High-flow piston design for optimal oil movement
• Ultralight steel coil spring — strong, durable, and lightweight
• Easy to tune and service for long-term reliability
• Bumper can be replaced without releasing pressure
Technical Specifications
Type of Mount
Standard (eye-to-eye)
Adjustments
• Rebound: 24-click adjustment
• Spring preload: 1–10 mm max
Colors
• Shock body: Silver
• Coil spring: White
Coil Spring
• Spring rates: 63.6 N/mm, 68.7 N/mm, 73.6 N/mm, 78.7 N/mm, 83.6 N/mm (each includes a preload spacer)
• Material: Ultralight steel
• Sizes available (mm): 265x60
Size & Compatibility
• 265x60 mm – Honda, Scorpa, Sherco, TRRS, Vertigo
Weight
1250 g (280 mm version without hardware)
Specifications
| Feature |
Specification |
| Brand |
Formula / TECH Suspension |
Fitment
Check the fitment above against your bike and brake or suspension model before ordering. If you are not sure, contact BHive Moto with your bike details and we will help you confirm it.
