F4X Hunter's Edition Full Bundle: The Complete Field Setup

GhostCat calls the F4X Hunter's Edition Full Bundle its complete off-grid hunting rig: the 4th-generation F4X paired with the accessories you need in the field, sold together as one package.

It's built for hunters and outdoorsmen accessing stands, slipping through timber trails, or hauling gear and game across hills. A whisper-quiet 60V steel-geared hub motor (2,200W, 3,300W peak) helps you get in and out undetected, 160+ Nm of torque climbs steep ridges with a load aboard, and KKE suspension smooths out creek crossings and rough two-track.

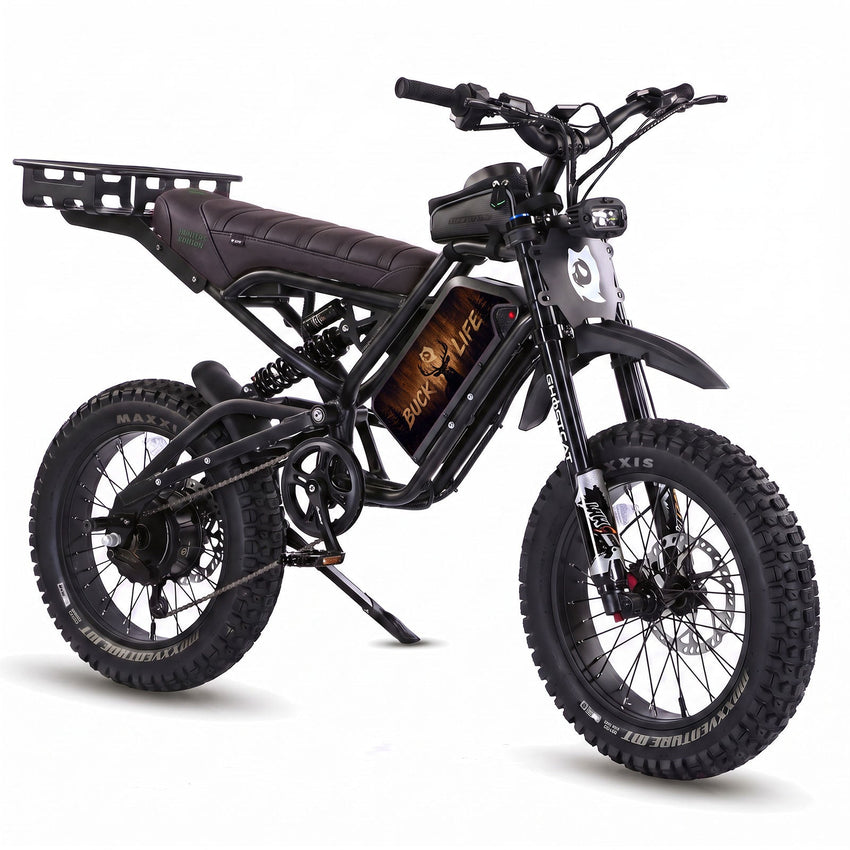

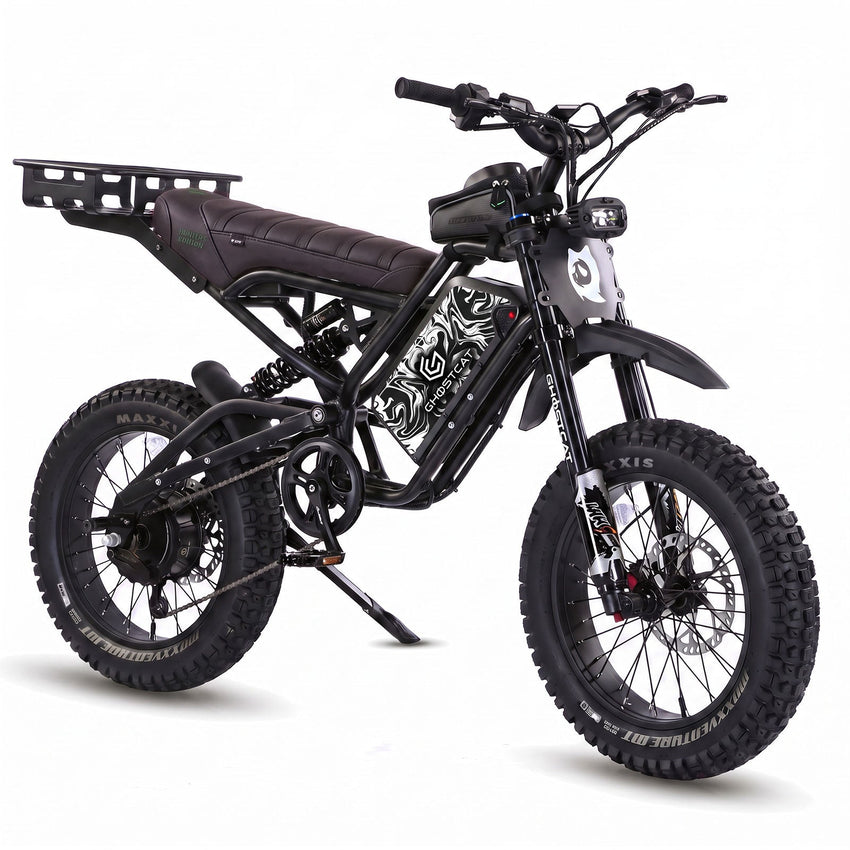

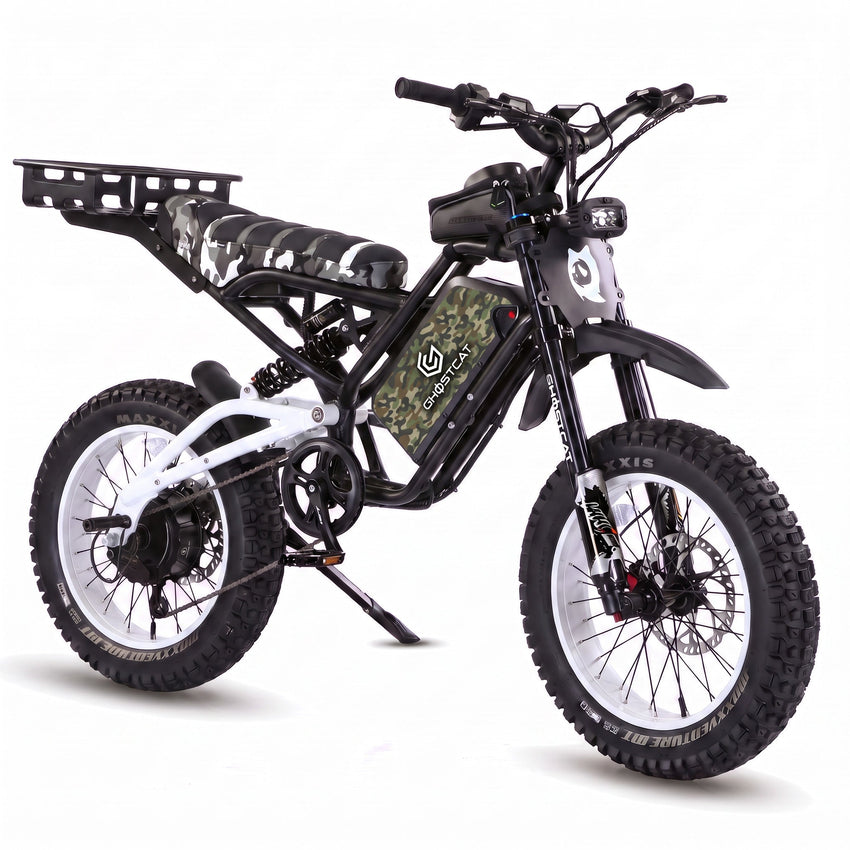

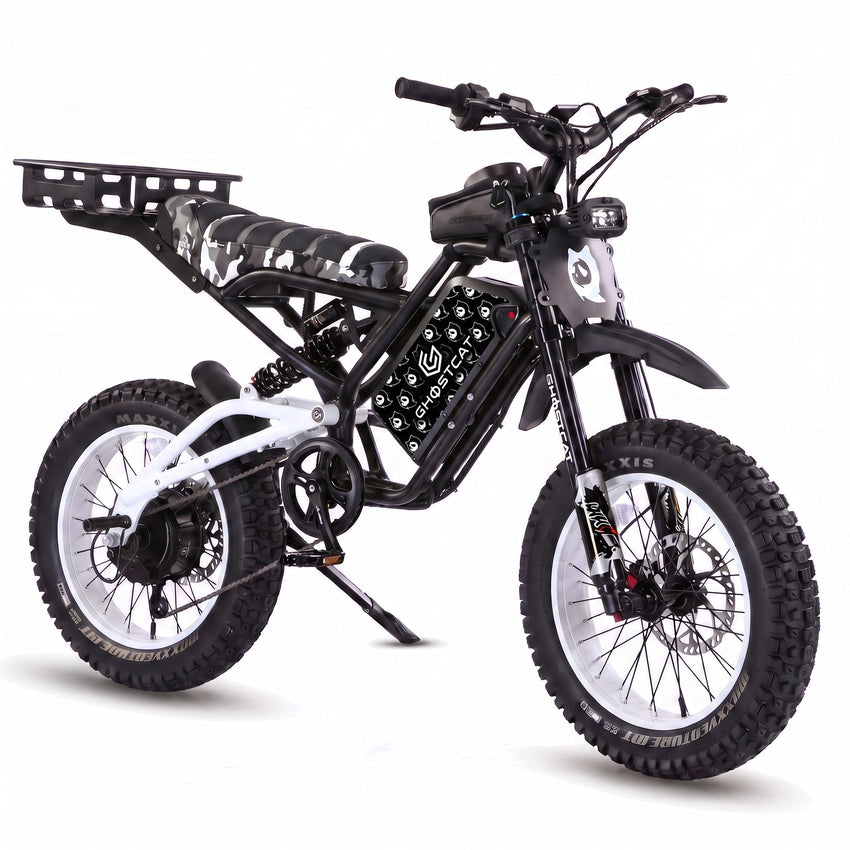

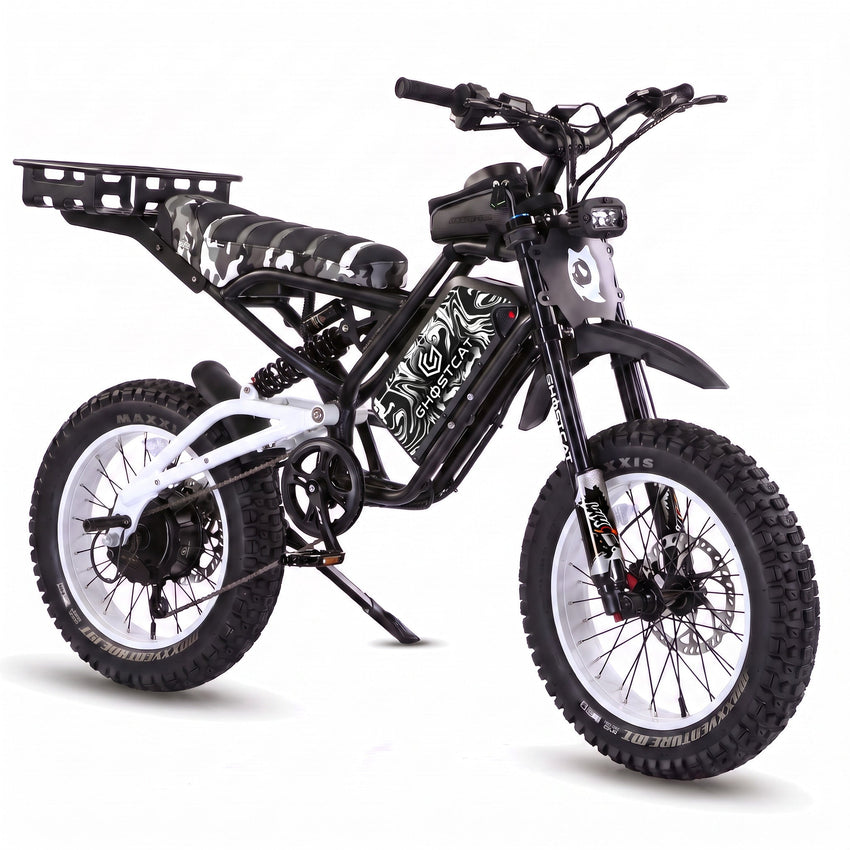

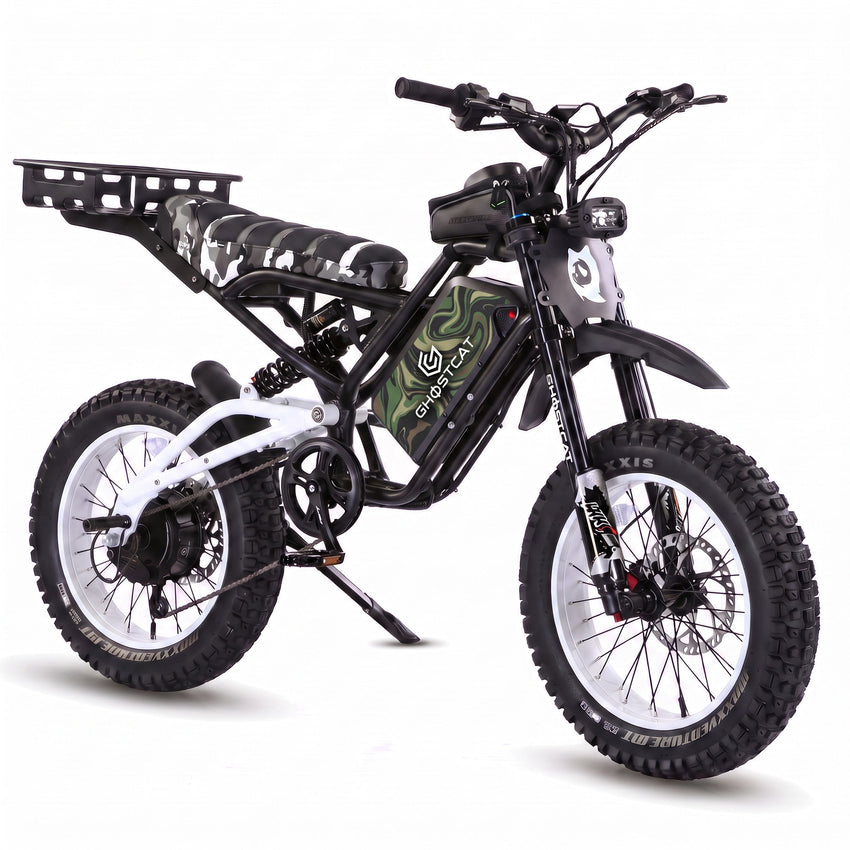

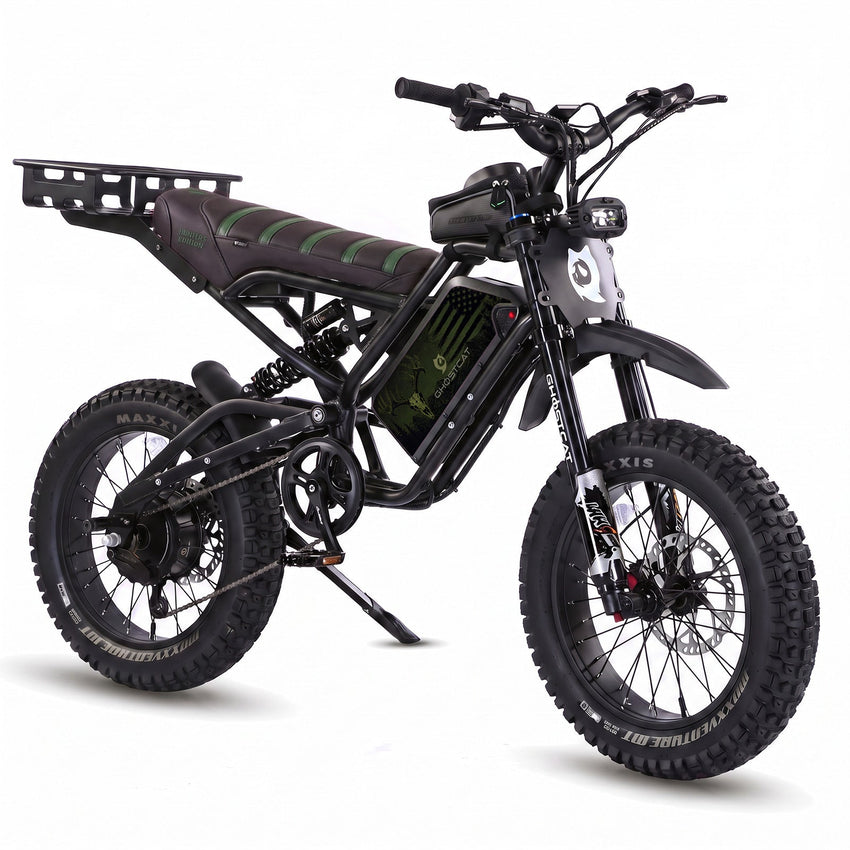

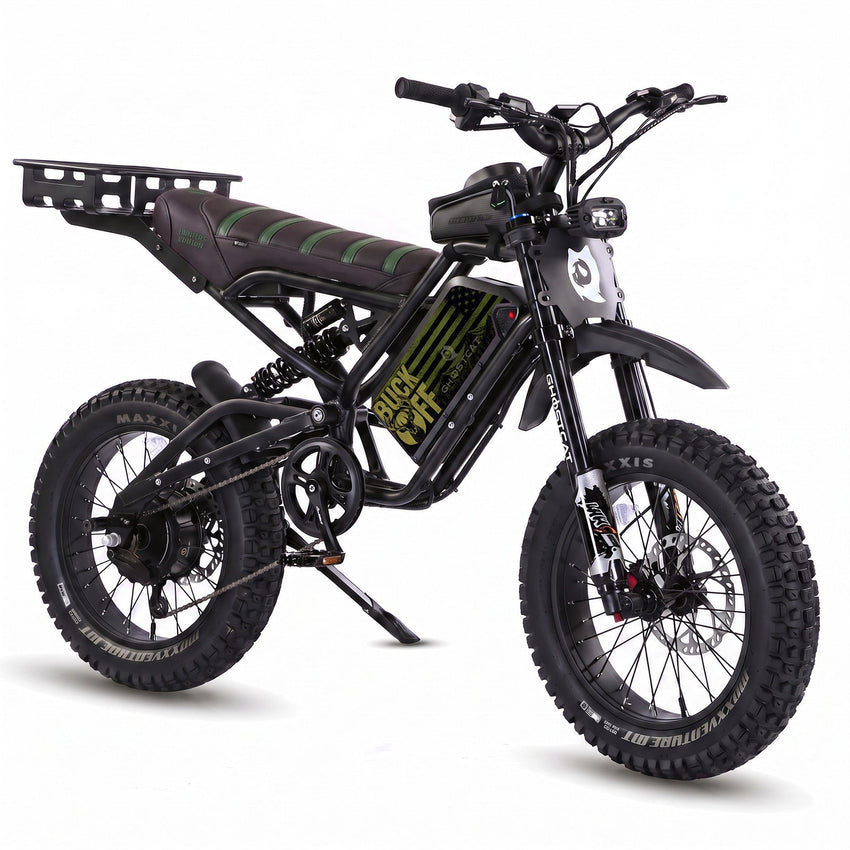

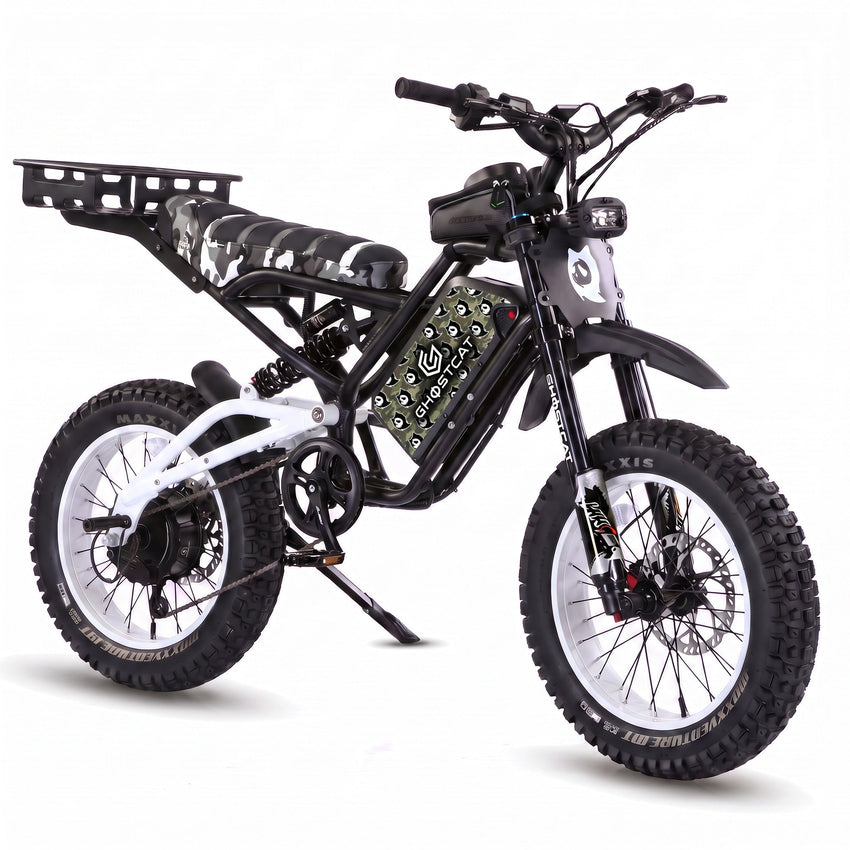

You set it up your way with three choices: frame color (Army Green or Blackout), Hunter's Edition Tapia seat design (Black or Black & Green), and battery wrap design. There are 12 wraps: Grunge, Marble Black & White, Ghost Black, Ghost Green Camo, Marble Green Camo, Spider Web, Army Camo, American Flag, American Flag Buck, American Flag Skull Buck, Buck Life, and Buck Off.

What's Included

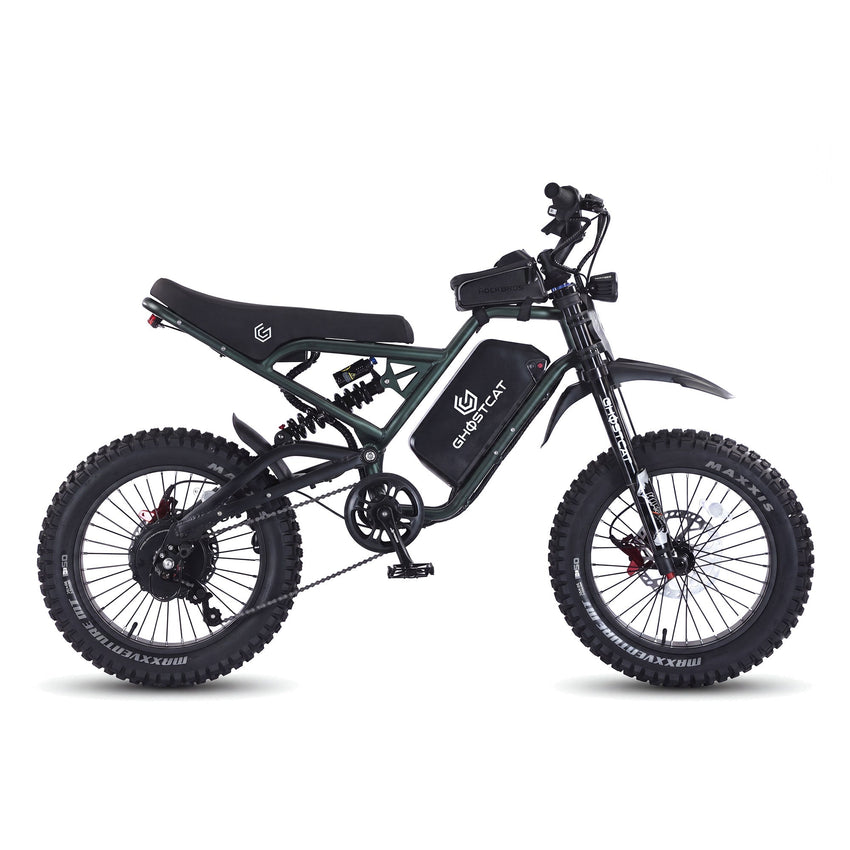

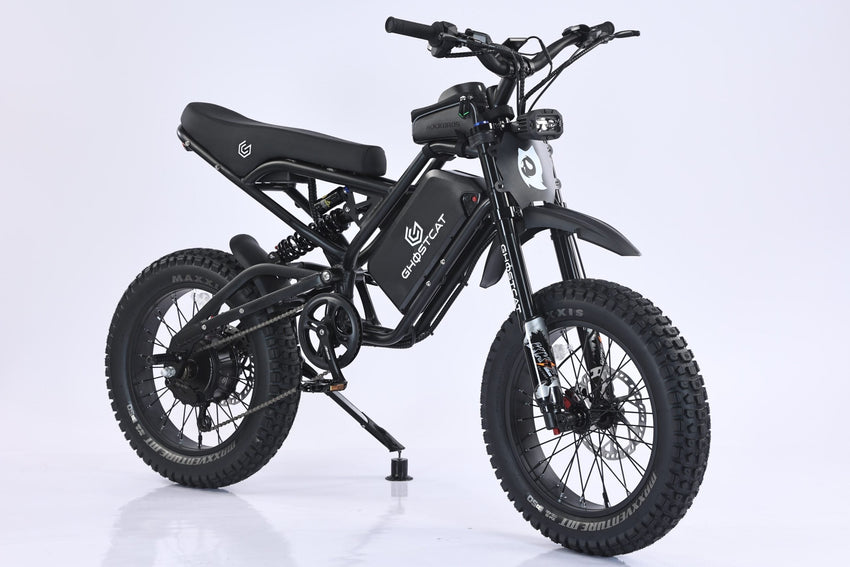

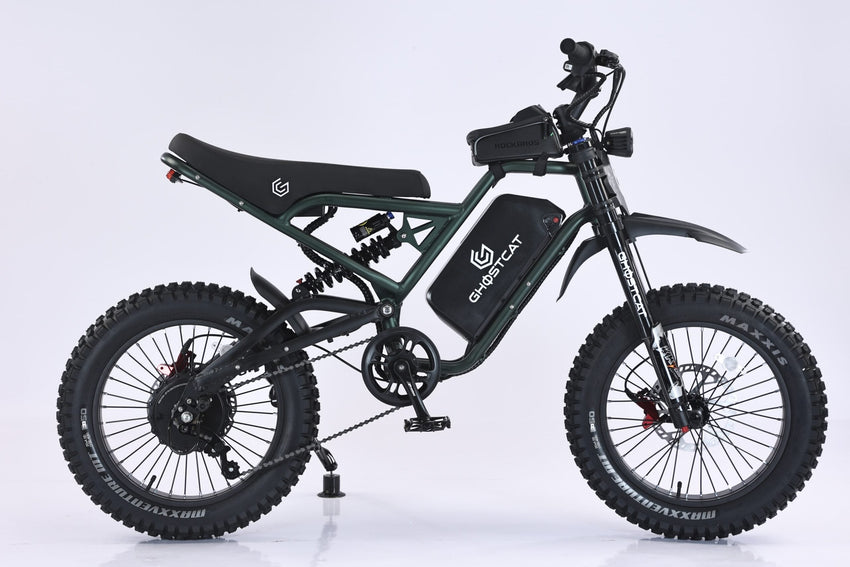

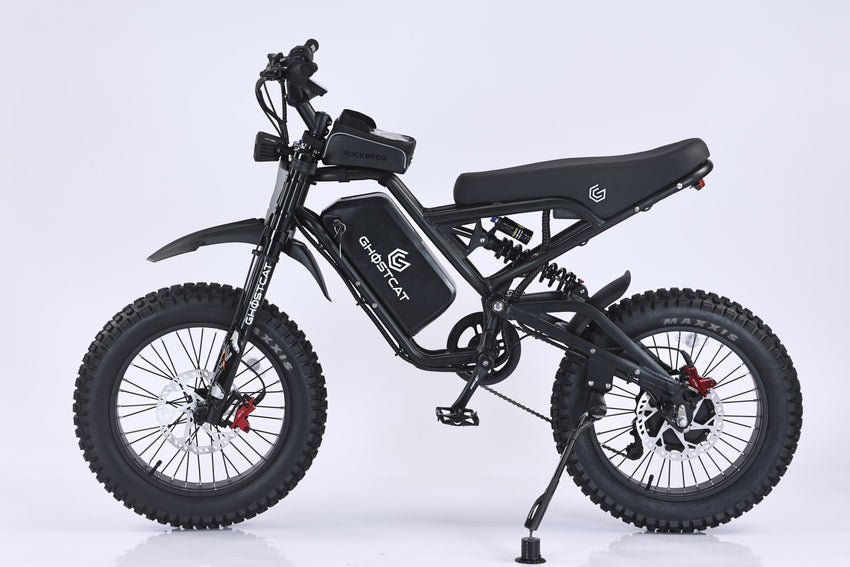

GhostCat F4X Bike (Army Green or Blackout)
Handcrafted Tapia Hunter's Edition Seat (Black or Black & Green)
Battery Wrap for the 52/60V 25Ah battery (your choice of design)
Rear Rack & Basket for hauling gear and game

GhostCat ships the accessories separately from the bike.

Technical Specifications

Feature	Specification
Motor	60V 2200W Nominal Hentach Geared Hub Motor (3,300W Peak), 160Nm+ Torque
Controller	55 Amp Controller (BEAST Mode upgrade available)
Battery	60V 25Ah (1,500Wh) Removable Lithium-Ion, LG Cells
Range	25-50 Miles (up to 50 miles pedal assist)
Top Speed	40+ MPH (Private Off-Road Use)
Weight	86 LBS (including removable battery)
Max Load	275 LBS
Frame	20" Aluminum Alloy Soft-Tail Frame
Suspension	KKE Front Fork 120mm Travel, Adjustable Rear Suspension
Brakes	Hydraulic Disc Brakes, 203mm Rotors, 4-Piston Calipers
Tires	20" x 4" Maxxis Off-Road Fat Tires
Drivetrain	Single Gear (optimized for power delivery)
Display	Medium Screen LCD Backlight
Throttle	Full Twist Grip
Lights	Front LED Headlight, Rear Brake Light
Seat	Handcrafted Tapia Hunter's Edition Seat (included)
Dimensions	L: 65.7" x W: 28" x H: 40.5", Seat Height: 33"
Charging Time	5-7 Hours
Colors	Frame: Army Green or Blackout. Seat: Black or Black & Green. Battery wrap: 12 designs
Age	18+ (per GhostCat)

Revolutionary 60V Power System

60V 2200W Hentach Geared Hub Motor – 3,300W Peak

160Nm+ Torque: Most powerful GhostCat motor ever
40+ MPH Top Speed: True motorcycle-level performance
Steel Gears: Extreme durability
Geared Hub Design: Superior torque and hill-climbing
55 Amp Controller: Maximum power delivery
Torque Clamp System: Enhanced motor stability

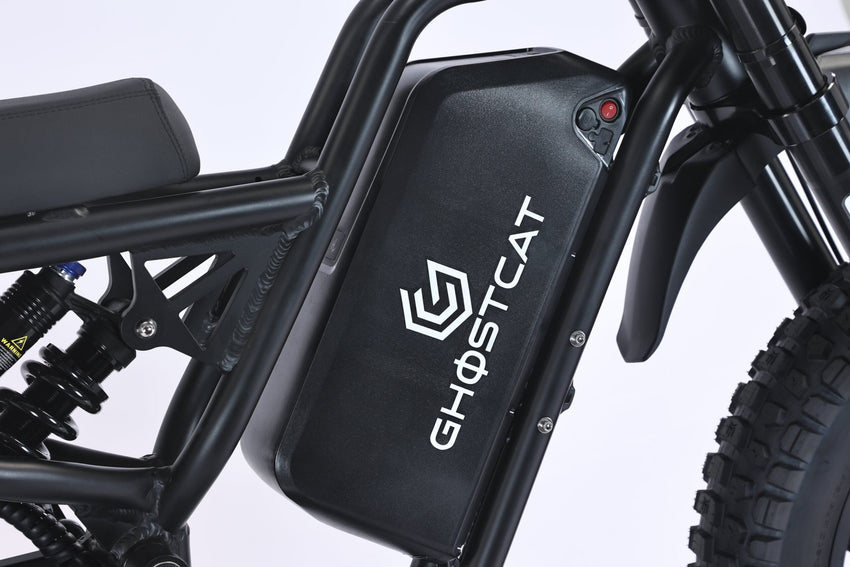

60V 25Ah Battery – 1,500Wh Powerhouse

25-50 Mile Range: Up to 50 miles with pedal assist; depends on mode, terrain, and load
LG Premium Cells: Industry-leading reliability
1,500Wh Capacity: Largest battery in GhostCat lineup
60V System Advantage: Higher efficiency, less heat, more power
Removable Design: Charge anywhere
5-7 Hour Charging: Full recharge overnight

BEAST Mode Controller Programming (FREE Upgrade)

Warning: Recommended only for very experienced riders
Dramatically Increased Acceleration: Explosive low-end torque
Enhanced Top Speed: Push beyond 40+ MPH limits
Raised Thermal Regulation: Higher sustained performance
Free Upgrade: Send controller back for free programming
1-3 Day Turnaround: Quick reprogram and return
Aftermarket Upgrade: Available anytime after purchase

Premium Suspension & Handling

KKE Premium Suspension System

KKE Front Fork: 120mm travel for extreme terrain

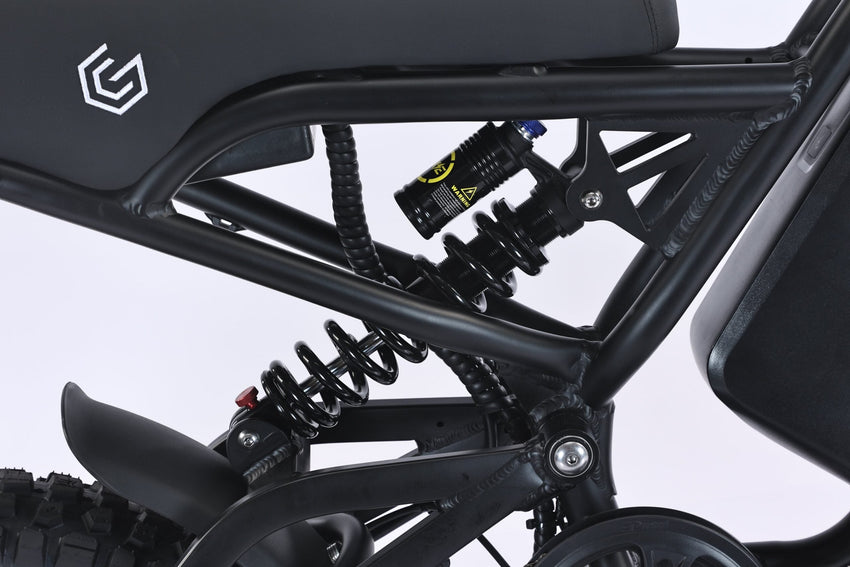

Adjustable Rear Shock: Tune for your weight and style
Full Suspension: Smooth riding on rough trails
Soft-Tail Frame Design: Additional rear compliance
Aluminum Alloy Construction: Lightweight yet strong

Maxxis Off-Road Tires

20" x 4" Fat Tires: Maximum traction and stability
Maxxis Off-Road: Premium tire for extreme terrain
Deep Tread Pattern: Mud, sand, rock, and trail capability
Load Rating: 275 lb max load

Hydraulic 4-Piston Disc Brakes

203mm Rotors: Maximum heat dissipation
4-Piston Calipers: Extreme stopping power for 40+ MPH
Hydraulic Design: Superior modulation and feel
All-Weather Performance: Reliable in any conditions
Front & Rear: Balanced braking for safety

Advanced Features & Technology

Comprehensive Lighting System

Front LED Headlight: Bright illumination for night riding
Rear Brake Light: Safety and visibility
High-Output LEDs: Enhanced visibility for 40+ MPH riding

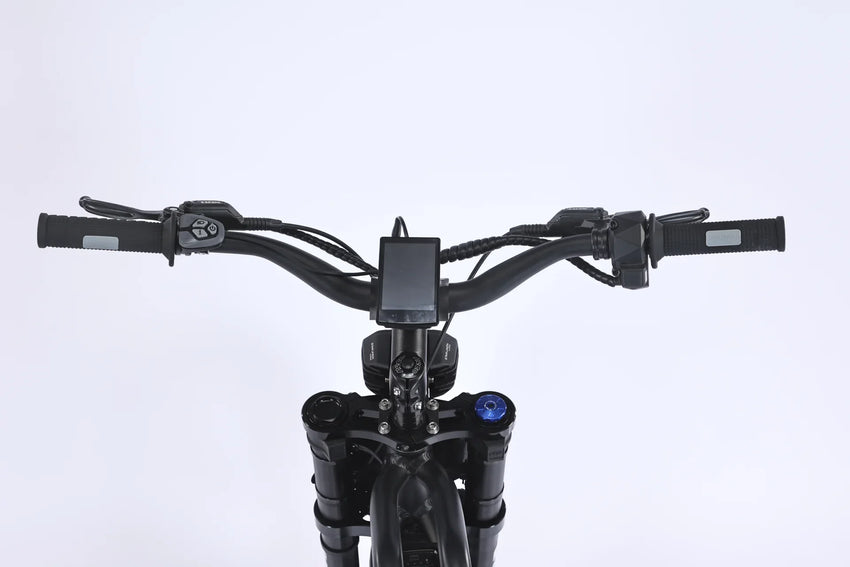

Medium Screen LCD Display

Backlight: Clear viewing in all conditions
Real-Time Data: Speed, battery, distance, mode
3 Riding Modes:
- Mode 1: Throttle-only (all-electric)
- Mode 2: Pedal assist (5 settings)
- Mode 3: Manual pedaling
Easy Operation: Intuitive interface

Full Twist Grip Throttle

Instant Power: Full twist for immediate acceleration
Smooth Control: Precise power delivery
Comfortable Design: Ergonomic throttle
40+ MPH Capability: Unleash full motor power

Water-Resistant Storage Bag

TPU Film Window: Cell phone access
Weather Protection: Water-resistant construction
Convenient Storage: Essentials and misc items
Integrated Design: Frame-mounted

FAQ

Q: How is this different from the standard F4X? A: It's the same 4th-generation F4X bike and specs, bundled with a Handcrafted Tapia Hunter's Edition seat, a battery wrap in your choice of design, and a rear rack and basket. The frame comes in Army Green or Blackout.

Q: What's included in the bundle? A: The GhostCat F4X bike, a Handcrafted Tapia Hunter's Edition seat, a battery wrap, and a rear rack and basket for hauling gear and game.

Q: What is BEAST Mode and should I get it? A: BEAST Mode is a free controller programming upgrade that dramatically increases acceleration, torque, and top speed. It's recommended ONLY for very experienced riders who can handle aggressive power delivery. Most riders should gain experience with standard mode first.

Q: Is this bike street legal? A: This F4X is designed for private off-road use. It ships set to 20 MPH and 750W (Class 2 compliant), but can be unlocked for off-road use to reach 40+ MPH. Check your local e-bike regulations before riding on public roads.

Q: What's the real-world range? A: 25-50 miles, with up to 50 miles in pedal assist. Actual range depends on terrain, rider weight, riding style, and conditions. The 60V 25Ah battery is the largest battery in the GhostCat lineup.

Q: How long does it take to charge? A: 5-7 hours for a full charge using the included charger. The 60V 25Ah (1,500Wh) battery is removable for convenient charging.

Q: What age is this bike appropriate for? A: GhostCat lists this bike for riders 18 years of age and older. Due to the 40+ MPH capability and BEAST Mode option, we recommend this bike for experienced riders only.

Q: What tires come with this bundle? A: GhostCat specs this bundle's F4X with 20" x 4" Maxxis Off-Road fat tires.

Q: How much assembly is required? A: The bike ships 85% assembled and requires minor assembly (handlebars, pedals, seat, front wheel, accessories). Most riders complete assembly in 30-60 minutes. GhostCat ships the bundle accessories separately from the bike.

Buy Local at BHive Moto

Available from BHive Moto in West Jordan, UT, with local pickup and our in-house service center for setup, maintenance, and repairs.
