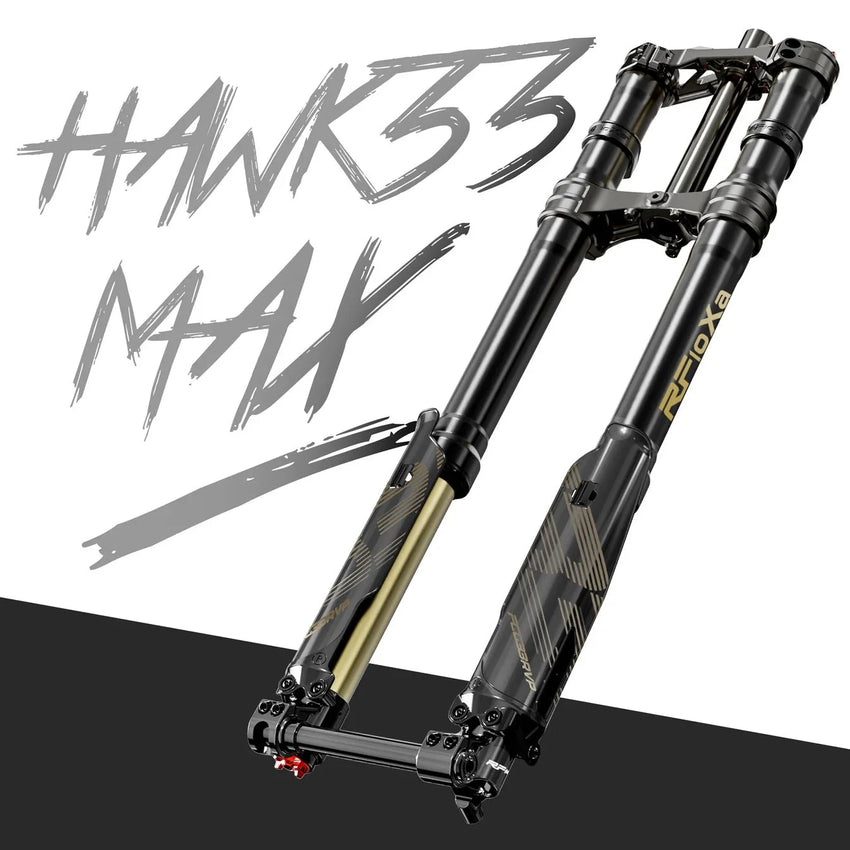

RFloXa Hawk33 Max inverted fork in black with gold stanchions

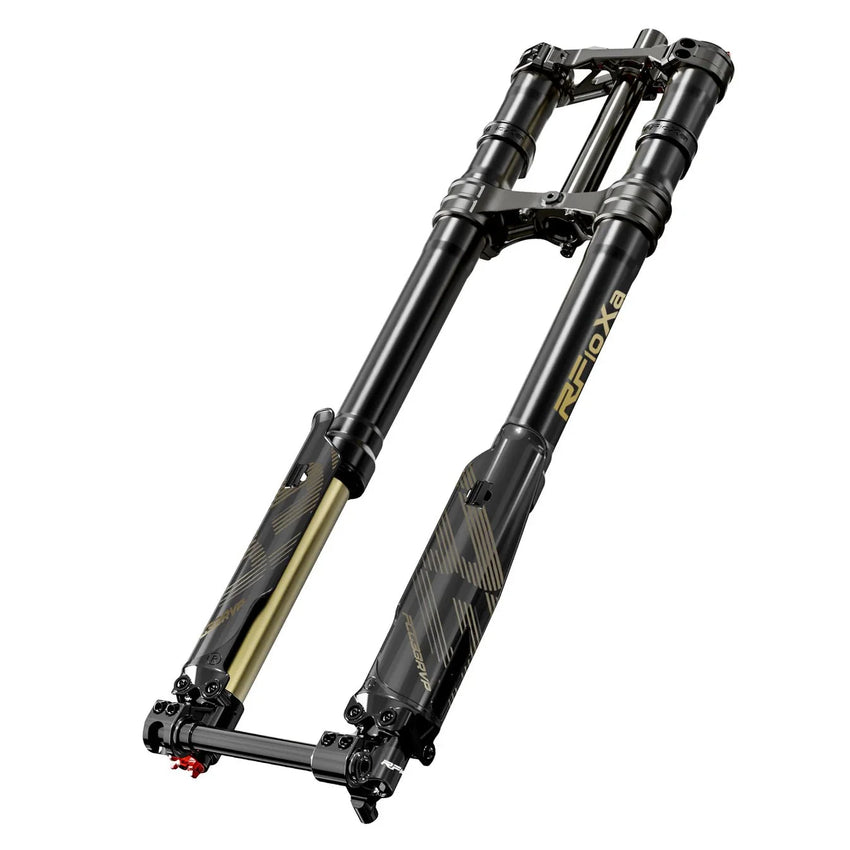

RFloXa Hawk33 Max fork, three-quarter view on white

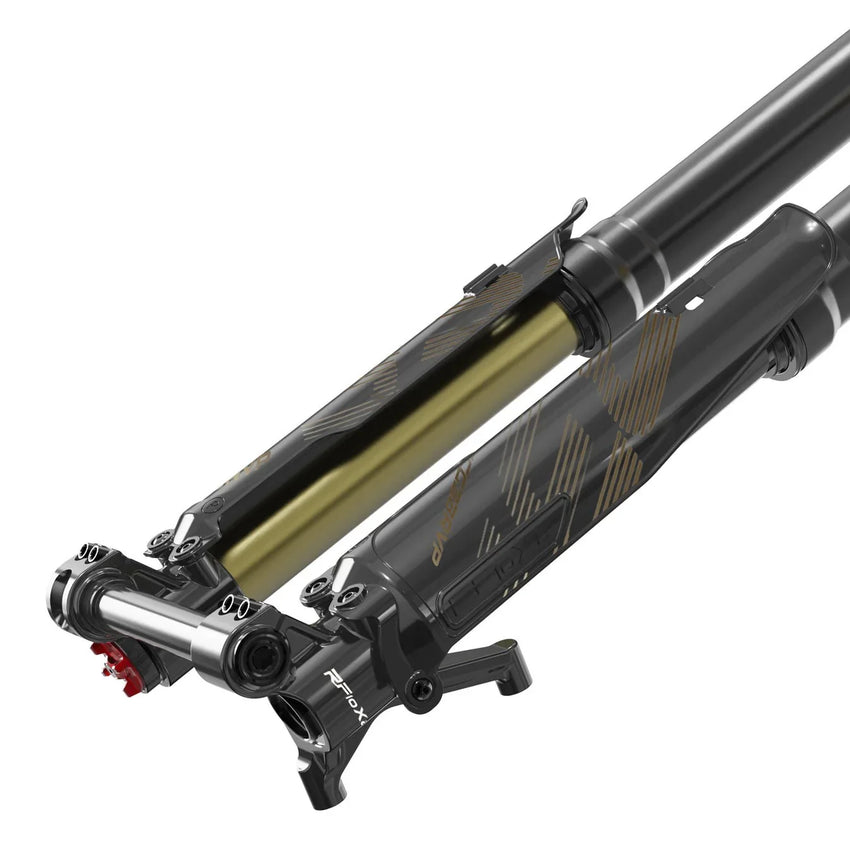

RFloXa Hawk33 Max fork lying flat, lower legs and axle
RFloXa Hawk33 Max fork with black triple clamps, front view

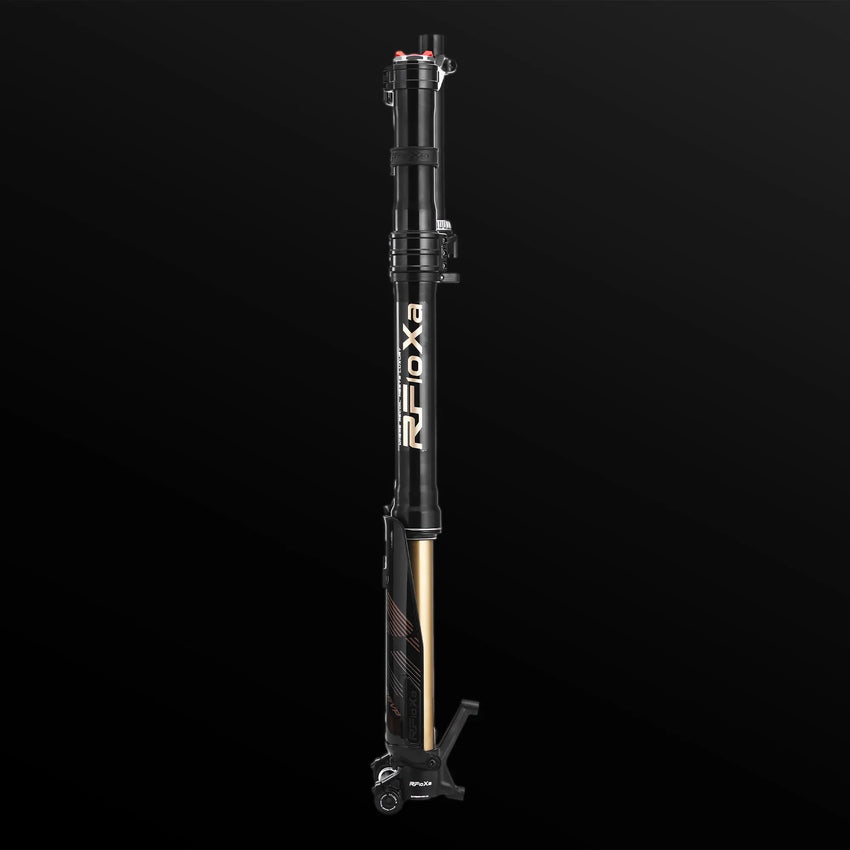

RFloXa Hawk33 Max fork, side profile

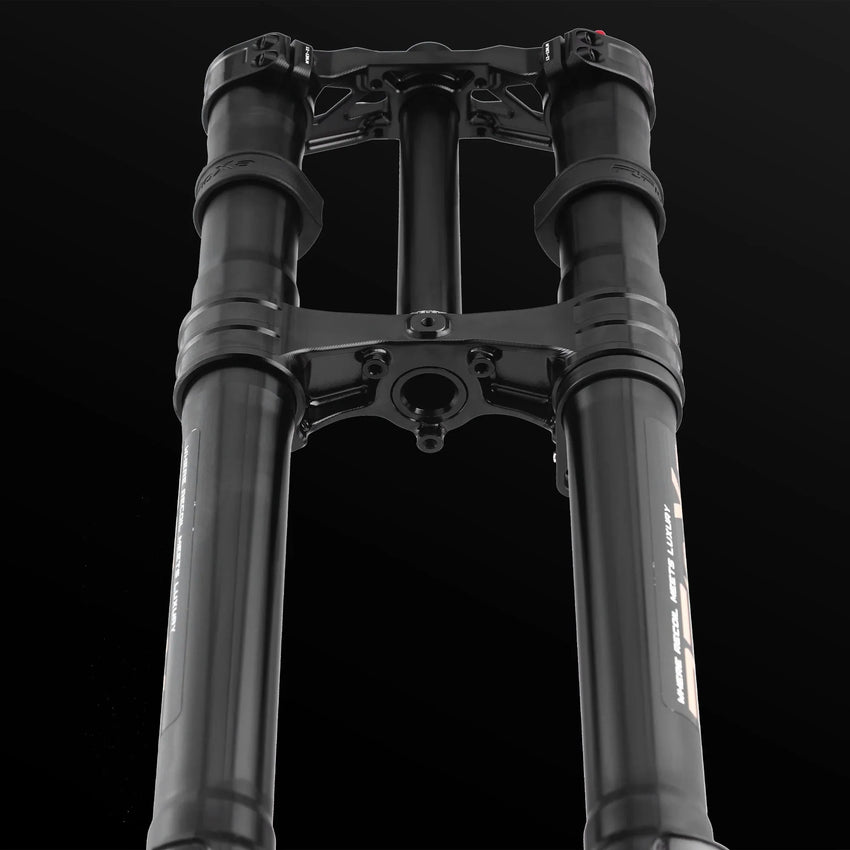

RFloXa Hawk33 Max black triple clamps and stanchions, close-up

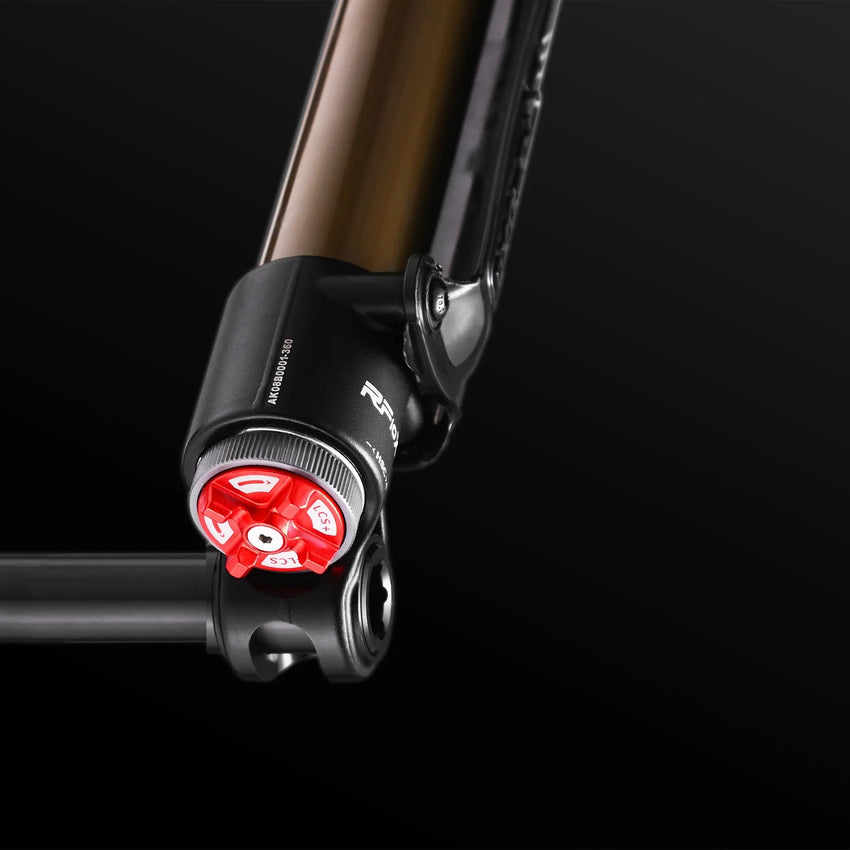

RFloXa Hawk33 Max red rebound adjuster on lower leg

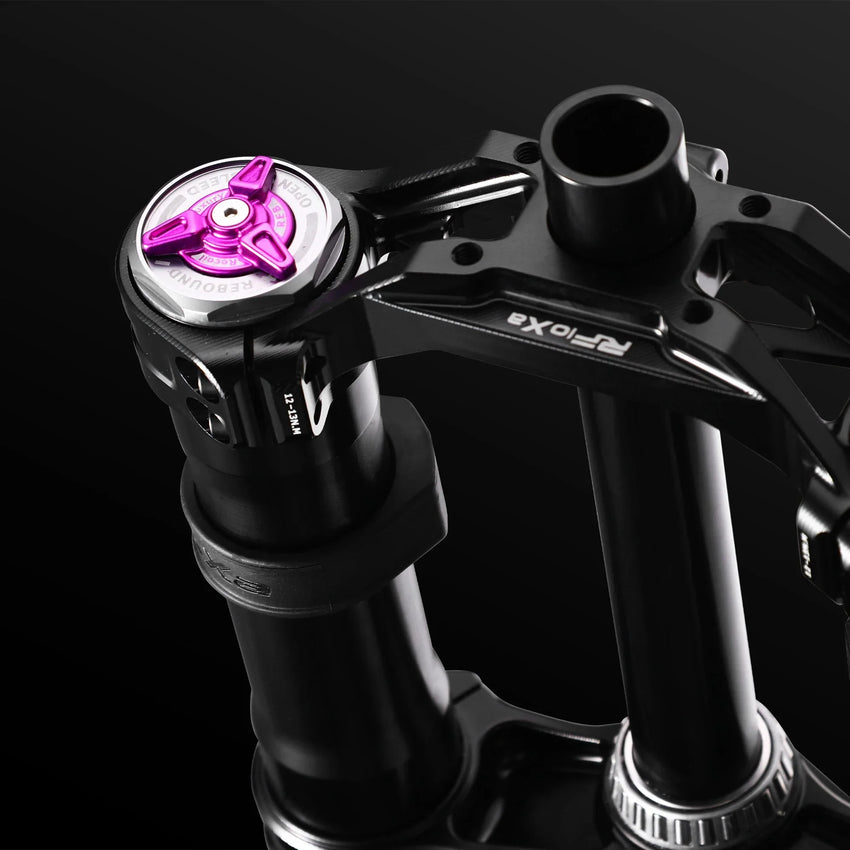

RFloXa Hawk33 Max purple top cap adjuster on black crown

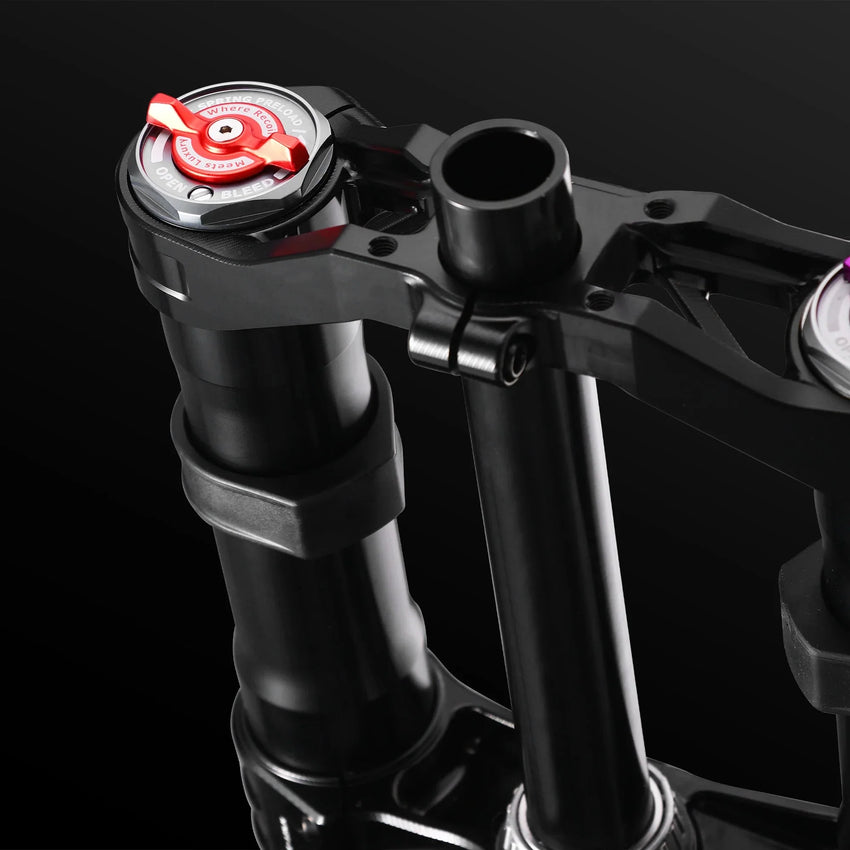

RFloXa Hawk33 Max red top cap preload adjuster on black crown

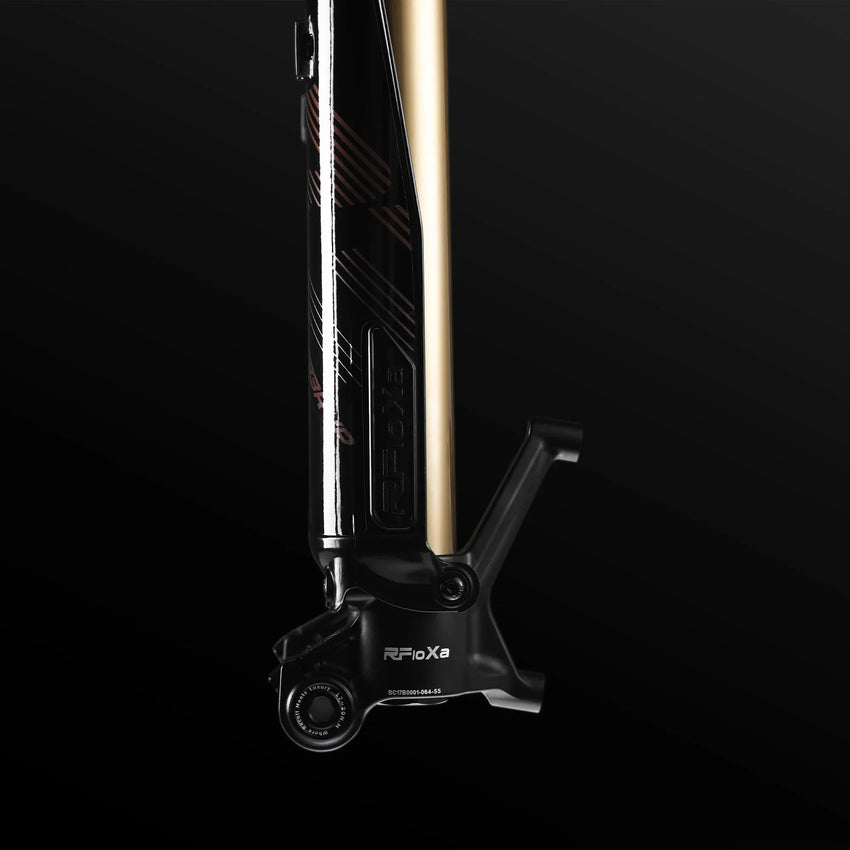

RFloXa Hawk33 Max lower leg, axle lug and brake caliper mount
RFloXa Hawk33 Max inverted fork in black with gold stanchions
RFloXa Hawk33 Max fork, three-quarter view on white
RFloXa Hawk33 Max fork lying flat, lower legs and axle
RFloXa Hawk33 Max fork with black triple clamps, front view
RFloXa Hawk33 Max fork, side profile
RFloXa Hawk33 Max black triple clamps and stanchions, close-up
RFloXa Hawk33 Max red rebound adjuster on lower leg
RFloXa Hawk33 Max purple top cap adjuster on black crown
RFloXa Hawk33 Max red top cap preload adjuster on black crown
RFloXa Hawk33 Max lower leg, axle lug and brake caliper mount

RFloXa Suspension

RFloXa Hawk33 Max Fork

Sale price $999.00
Sold out
Shipping calculated at checkout.

Out of stock

Spring Rate & Travel: 45lbs 228mm travel 800mm Length

RFloXa Hawk33 Max Fork

BHive Moto LLC

Pickup currently unavailable

5243 Wells Park Rd. #301C
West Jordan UT 84081
United States

Call: (385) 237-3341
Description

RFloXa Hawk33 Max Fork



RFloXa Hawk33 Max inverted fork with preloaded bearing kit, 203mm or 228mm travel. Details below are as published by RFloXa and its US distributor.



Features and Specifications

About this item

① Preloaded Bearing Kit Included – This fork comes pre-installed with a bearing kit by default for quick and easy installation—no extra parts needed. If you require a version without the pre-pressed bearing kit



② Purpose-Built for Talaria MX5 – Engineered specifically around the Talaria Sting MX5 geometry, this fork ensures ideal fitment and performance. It's compatible with both 19" and 21" wheels, making it versatile for a range of setups and terrain.



③ Spring Rate Recommendations
For 203mm Travel Fork (19"/21" wheel compatible):

  • 45lbs spring – ≤100kg

  • 60lbs spring – 100–130kg (ideal for heavy jumping)

  • 45–60lbs progressive spring – 80–130kg

For 228mm Travel Fork (19"/21" wheel compatible):

  • 45lbs spring – ≤100kg

  • 55lbs spring – 100–130kg



④ Precision Suspension System – Equipped with an inverted oil-spring damping system, this fork provides multi-stage adjustability for high-speed compression, low-speed compression, rebound, and spring preload, allowing you to dial in your ride for any terrain or riding style.



⑤ High-Quality Construction – Built using AL6061-T6 forged aluminum alloy for the bottom brackets and AL7075-T6 aluminum alloy for the fork tubes, this fork delivers the ideal balance of strength and weight. The use of 55CRSI spring wire ensures enhanced durability and long-term performance.



FEATURES:

  • Center Distance: 750–800mm

  • Main Piston Travel: 203–228mm

  • Tube Diameter: ∅37mm

  • Caliper Mount Spacing: 95.5mm

  • Disc Brake Size: ∅220mm (Upgradeable)

  • Damping System: Inverted Oil-Spring

  • Adjustments: Multi-stage High-Speed Compression, Low-Speed Compression, Rebound, Spring Preload

  • Materials: AL6061-T6 Forged Aluminum (Bottom), AL7075-T6 Aluminum (Tubes)

  • Spring Wire: 55CRSI

  • Triple Clamp: CNC Precision Machined



Fitment:

  • Talaria Sting MX5



Available Options

  • 45lbs 228mm travel 800mm Length
  • 55lbs 228mm travel 800mm Length
  • 60lb 203mm Travel 750mm Length
  • 45-60lbs travel 750mm Length
