RFloXa Hawk35 Max Fork

RFloXa Hawk35 Max Fork

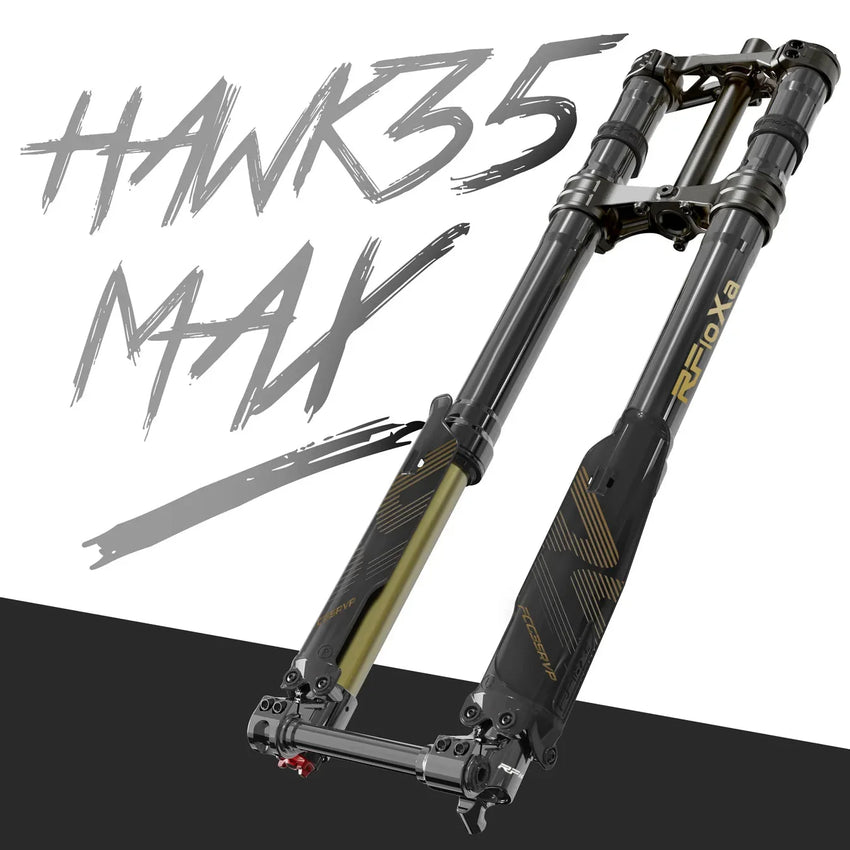

RFloXa Hawk35 Max inverted fork for E-Ride Pro 3.0 and SR, 203mm or 228mm travel. Details below are as published by RFloXa and its US distributor.

Features and Specifications

About this item

① Ready-to-Install Design – This premium fork comes preloaded with a bearing kit by default, allowing direct installation with no extra parts required—specifically designed to match the E Ride Pro 3.0 / SR platform. If you require the fork without the bearing kit pre-pressed

② Tailored Fitment Options – Built to the geometry of the E Ride Pro 3.0 / SR, this fork ensures a precise fit. The standard drop crown color is black.

③ Spring Weight Recommendations
For 203mm Travel Fork (compatible with 19"/21" wheels):

• 45lbs spring – ≤100kg

• 60lbs spring – 100–130kg (ideal for heavy jumping)

• 45–60lbs progressive spring – 80–130kg

For 228mm Travel Fork (compatible with 19"/21" wheels):

• 45lbs spring – ≤100kg

• 55lbs spring – 100–130kg

④ Performance Suspension System – Featuring a high-performance inverted oil-spring damping system, this fork offers multi-stage adjustability for high-speed compression, low-speed compression, rebound, and spring preload, ensuring optimal tuning across various riding styles and terrain types.

⑤ Built for Durability – The fork uses AL6061-T6 forged aluminum alloy for the bottom brackets and AL7075-T6 aluminum for the tubes. The spring wire is made from 55CRSI, engineered for longevity and performance in demanding off-road conditions.

FEATURES:

• Center Distance: 750–800mm

• Main Piston Travel: 203–228mm

• Tube Diameter: ∅37mm

• Caliper Mount Spacing: 99.5mm

• Disc Brake Size: ∅220mm (Upgradeable)

• Damping System: Inverted Oil-Spring

• Adjustments: Multi-stage High-Speed Compression, Low-Speed Compression, Rebound, Spring Preload

• Materials: AL6061-T6 Forged Aluminum (Bottom), AL7075-T6 Aluminum (Tubes)

• Spring Wire: 55CRSI

• Triple Clamp: CNC Precision Machined

• Fitment:

  • E Ride Pro 3.0 / SR

Available Options

• 45lbs 228mm travel 800mm Length
• 55lbs 228mm travel 800mm Length
• 60lb 203mm Travel 750mm Length
• 45-60lbs 203mm Travel 750mm Length
• 45lb 203mm Travel 750mm Length
